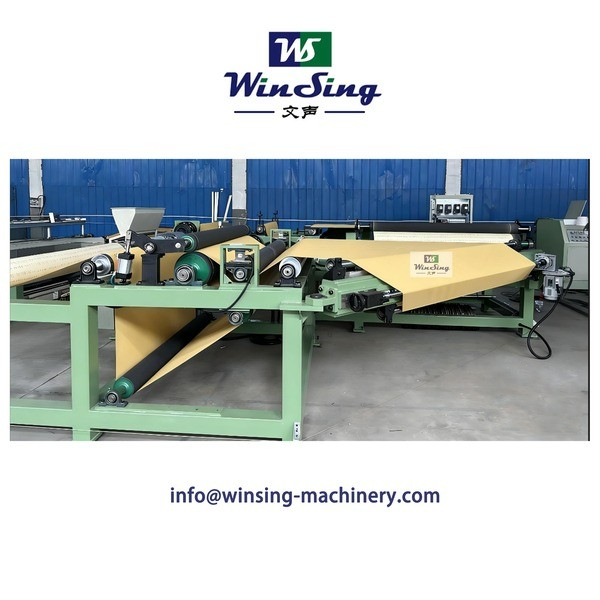

Abrasive Flexing Machine

Product Overview

This Sandpaper Flexing Machine is a specialized finishing machine designed for the post-treatment of coated abrasives such as sandpaper, abrasive belts, and sanding discs. After the coating, electrocoating, and curing processes, the adhesive bond and backing material become rigid and brittle. Our flexing machine subjects the sandpaper to controlled, multi-directional bending and flexing action, effectively cracking the rigid bond structure and relieving internal stresses. This process imparts the final product with superior flexibility, softness, and anti-curl properties, making it ideal for subsequent converting operations (slitting, sheeting) and ensuring optimal conformability during user applications.

Key Features

>    Precision Flexing Mechanism: Equipped with multiple sets of flexing rollers with precisely adjustable intermeshing depth and wrap angle. This allows for fine-tuned control over the flexing intensity, accommodating various grit sizes from coarse to fine .

>    Multi-Directional Flexing: Capable of performing both longitudinal and transverse flexing to ensure uniform flexibility in all directions and completely eliminate curling tendencies.

>    Integrated Humidification System: Features a precision moisturizing unit that applies controlled moisture to the web prior to flexing. This softens the adhesive and backing fibers, enhancing the flexing effect and preventing material cracking during dry flexing .

>    Closed-Loop Tension Control: Integrated with an unwinder and rewinder, and guided by an edge position control (EPC) system, ensuring constant tension and stable web travel throughout the flexing process for a perfectly wound roll .

>    Dust Removal Function: Includes cleaning rollers at the entry section to remove loose abrasive grains and dust from the sandpaper surface, ensuring a clean final product .

>    Wide Width Capability: Accommodates various web widths and seamlessly integrates with upstream production lines or operates as a standalone finishing unit.

Technical Data

Working width: 1650 mm

Max diameter abrasive roll:1500 mm

Max weight abrasive roll:2500 kg

Working speed:5:80 m/min

General motorization:5 AC motors

Total installed electrical:power 70 kW

Overall dimension:4 x 6 h1,8 m

Weight:15.000 kg
