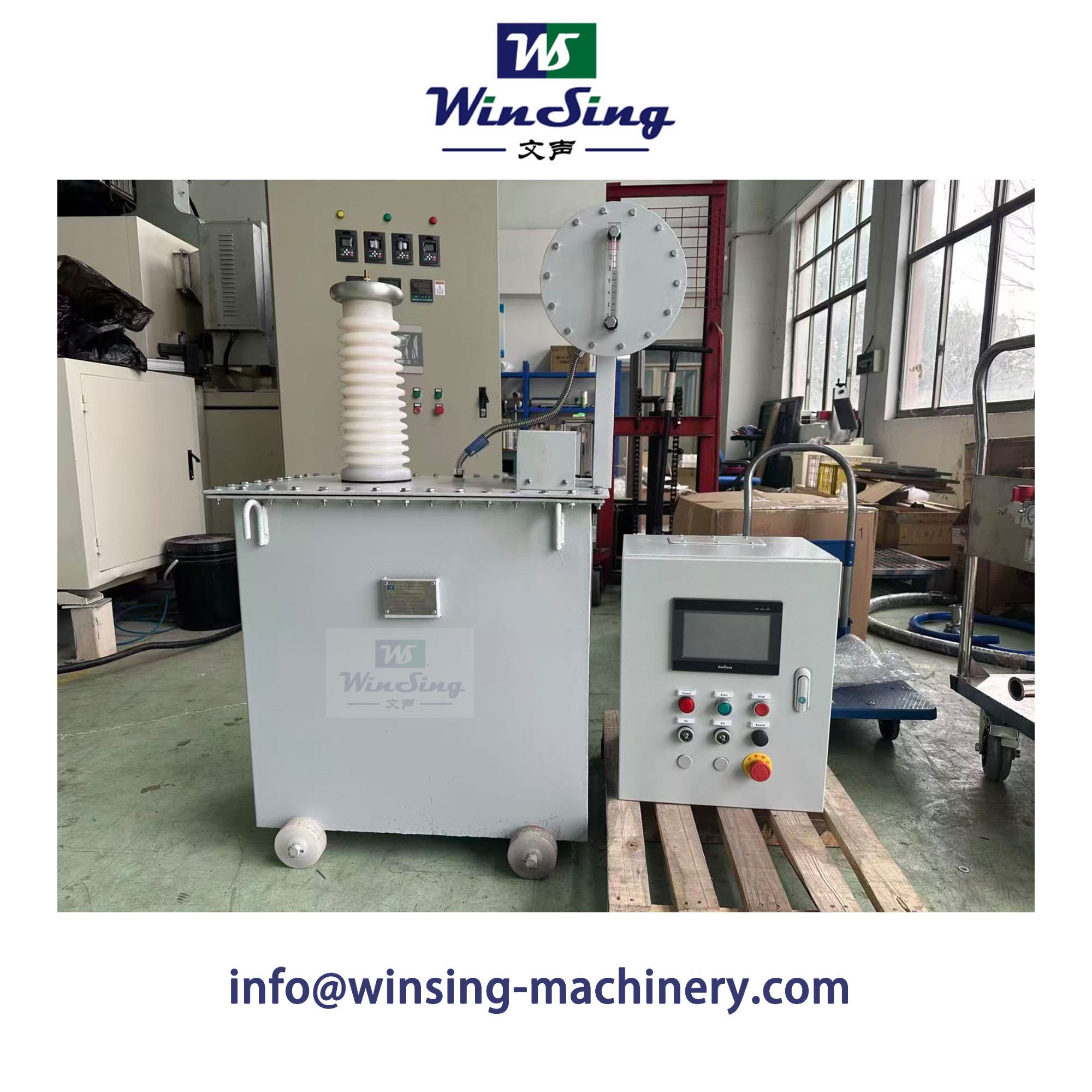

High Voltage Generator

1.Equipment Overview

This equipment is independently developed and is mainly used for electrostatic grain coating. It adopts communication technology with the frequency converter, enabling it to complete the required production tasks quickly and accurately.

2. Equipment uses and functions

This equipment is primarily used in the sandpaper industry. Through precise control of the frequency converter, the required electric field voltage is achieved. It has multiple functions, such as matching various transformers of the same or lower grade, and allows for user-input of desired parameters.

3 The types that can be provided are as follows :

Type   Frequency    HV/Currnt       Sand particle   Transformer    Features

BP-191  2.5-60Hz   0-60KV / 16mA     P40-1200         ULF     conventional

BP-192  2.5-60Hz   0-60KV / 20mA     P40-1600         ULF    expand the fine

BP-193  2.5-60Hz   0-60KV / 25mA     P36-1600         ULF    expand the coarse

BP-194  2.5-60Hz   0-60KV/ 30mA     P24-2400          ULF      beautiful
