Make Coater for Coated Abrasive Production Line

Make Coat Coater for Coated Abrasive Production Line

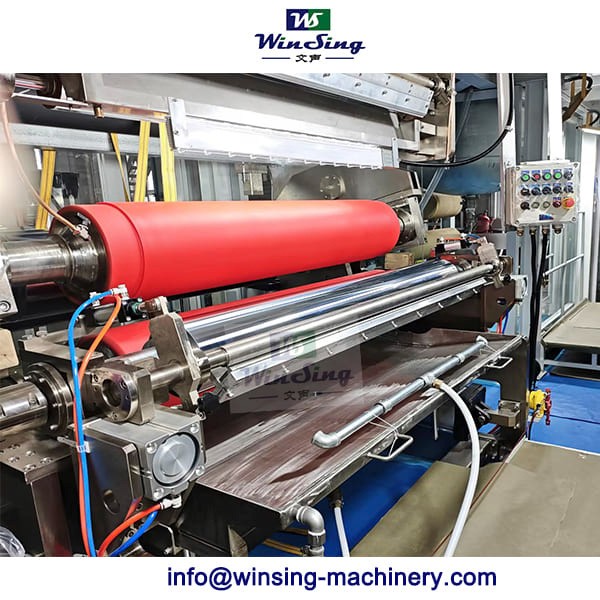

Winsing Make Coat Coater is a key machine in coated abrasive manufacturing lines, specially designed for applying the first adhesive layer onto abrasive backing materials.

The make coat process provides strong bonding between the backing material and abrasive grains, ensuring uniform grain adhesion and improving the quality and durability of finished abrasive products.

The machine is suitable for manufacturing abrasive paper, sanding belts, abrasive cloth and other coated abrasive products.

Application:

Suitable for precision coating of phenolic resin, urea resin, epoxy resin, animal glue and other materials such as paper-based, cloth based, composite materials, mesh cloth, film and non-woven fabrics;

Suitable for various adhesives such as phenolic resin, urea formaldehyde resin, epoxy adhesive, animal glue, etc

Standard configuration:

High precision chrome plated steel back roller

High precision rubber bottom roller

Servo gap adjustment mechanism

Electric lifting of rubber roller

Rubber rollers can be quickly replaced

Optional:

Synchronous belt drive system

Heated adhesive disc

Heated coating roller

Equipped with adhesive assisted coating head

Main technical parameters:

1. Paper based products A to F types

2. Suitable for PET, PES, PU and other film products

3. Buki product J F-YY

4. Fiber products with a maximum thickness of 0.84 mm

5. The widest coating width is 1650mm

6. Maximum production speed 50m/min

7. The maximum pressure between the two rollers is 60Kgf/cm

8. Model: WS-UW1650
