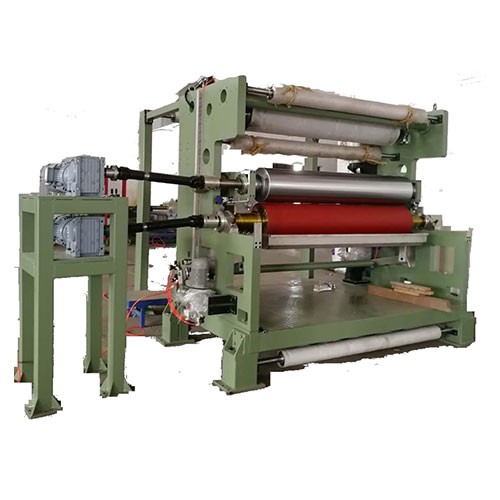

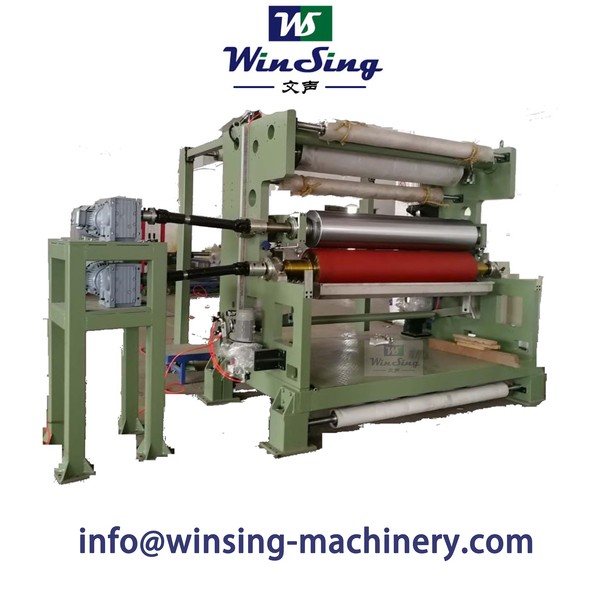

Two roll adhesive coating head

Application:

Suitable for precision coating of phenolic resin, urea resin, epoxy resin, animal glue and other materials such as paper-based, cloth based, composite materials, mesh cloth, film and non-woven fabrics;

Suitable for various adhesives such as phenolic resin, urea formaldehyde resin, epoxy adhesive, animal glue, etc

Standard configuration:

High precision chrome plated steel back roller

High precision rubber bottom roller

Servo gap adjustment mechanism

Electric lifting of rubber roller

Rubber rollers can be quickly replaced

Optional:

Synchronous belt drive system

Heated adhesive disc

Heated coating roller

Equipped with adhesive assisted coating head

Main technical parameters:

1. Paper based products A to F types

2. Suitable for PET, PES, PU and other film products

3. Buki product J F-YY

4. Fiber products with a maximum thickness of 0.84 mm

5. The widest coating width is 1650mm

6. Maximum production speed 120m/min

7. The maximum pressure between the two rollers is 60Kgf/cm
