Electro coater

Product Overview

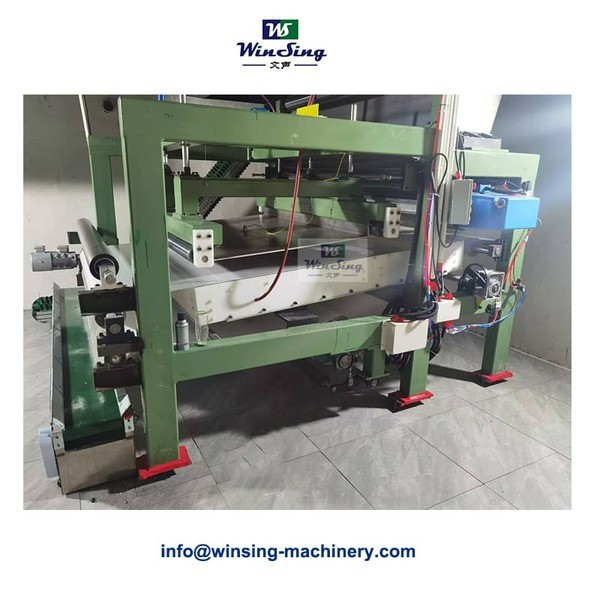

This Electrostatic Sandpaper Coater is a state-of-the-art electrocoater specifically designed for the critical electrostatic mineral coating process in the production of coated abrasives (sandpaper, abrasive belts, sanding discs). Positioned after the adhesive coater and before the pre-drying oven, this machine utilizes a high-voltage electrostatic field (up to 200kV) to charge abrasive grains (aluminum oxide, silicon carbide, etc.) and propel them uniformly onto the adhesive-coated backing material . This technology ensures that grains are embedded with their sharpest points outward, maximizing cutting efficiency and product durability. It is the essential core equipment for manufacturing high-performance abrasives.

Key Features

>    High-Voltage Electrostatic Field: Equipped with an AC square wave high-voltage generator delivering up to 200kV, creating a stable and uniform field for consistent grain adhesion and density

>    Precise Grain Orientation: The electrostatic force propels abrasive grains to embed with their sharpest tips facing up, resulting in superior cutting performance compared to gravity-fed systems .

>    Uniform Grain Distribution: Features a precision vibrating dispenser and controlled feed roller system to ensure abrasive grains are spread evenly across the full working width (up to 1600mm+), eliminating streaks and bare spots .

>    Wide Grit Range Capability: Handles a full spectrum of abrasive grits, from coarse (P40) to very fine (P2000), offering flexibility for various product specifications .

>    Integrated Tension Control: Seamlessly synchronizes with upstream coaters and downstream ovens to maintain constant web tension for precise mineral application.

>    Complete Safety System: Designed with high-voltage shielding, safety interlocks, and full compliance with international safety standards to protect operators .

Technical Specifications

>    Effective Coating Width: Customizable (Standard: 1300mm - 1650mm)

>    High-Voltage Output: 0-200kV (Adjustable)

>    Applicable Grit Range: P40 - P2000

>    Line Speed: 5-50 m/min (Variable Frequency Drive)

>    Dispensing System: Vibration Feeder + Precision Feed Roller

>    Power Supply: 380V ±5%, 50Hz, 3-Phase

>    Power Consumption: Approx. 8-15KVA (depending on configuration)
