The abrasive belt jointing machine is specially designed for producing endless sanding belts. It provides accurate belt overlap positioning, strong seam pressing and stable joint quality for coated abrasive manufacturers.
The machine is suitable for different abrasive belt materials, including aluminum oxide, silicon carbide and zirconia abrasive belts.
Brief Introduction

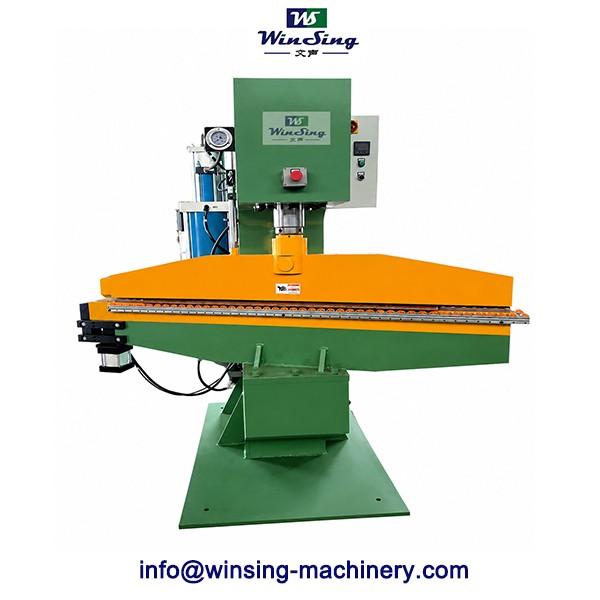

Joint Press Machine for abrasive Narrow Belts is a specialized machine used for joining two ends of abrasive narrow belt to create continuous loop.
Technical data
Nominal pressure: 25T（Continuing Adjust）
The working surface length: 800mm
Head temperature: 20-60ºC
Press time: 1-99second
Supporting power : 3KW +2KW（electrical heating)
Nominal pressure: 40T（Continuing Adjust）
The working surface length: 1600mm
Head temperature : 20-60ºC
Press time : 1-99second
Supporting power: 4KW +2KW（electrical heating)
